MicroFit MFHLP31006 Alternative to the Pall HC9650FUT16H

HC9650FUT16H
HC9650FUT16H
Datasheet preview

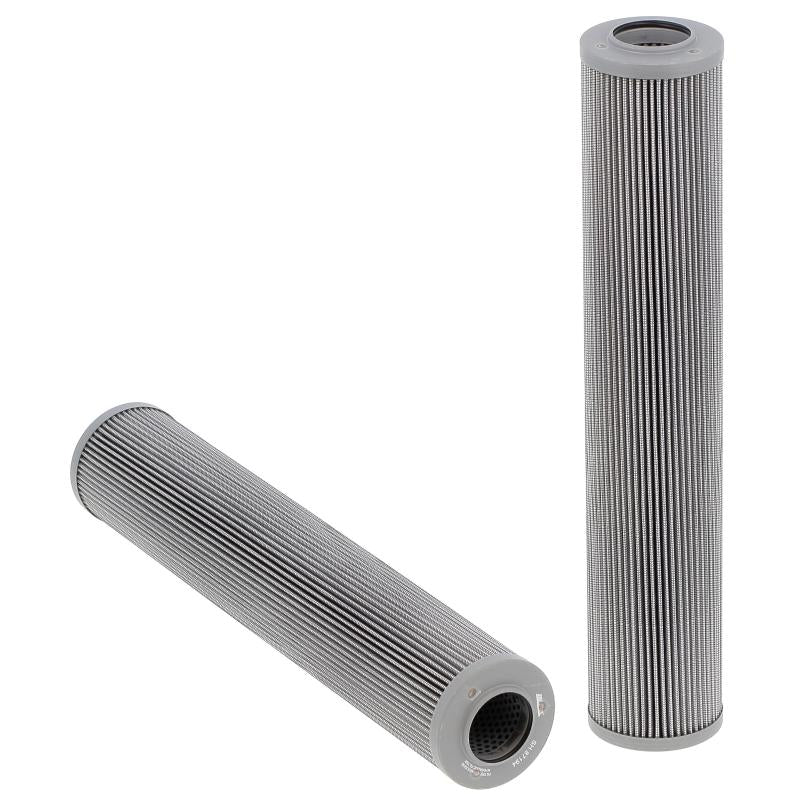

Representative product image Product image feedback

MicroFit® UltraGen III MFHLP31006 Pressure Filter | Alternative to the Pall HC9650FUT16H

Brand: MicroFit
Price Match
€150,95
3.98 kg
0.0026 m³
United Kingdom
8421.99.90
1.16 kg
0.003 m³
France
8421.99.90
0.9 kg
0.004 m³
United States
8421.29.80.90
1.81 kg
0.003 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP31006 is the MICROFIT® approved replacement to the Pall HC9650FUT16H. Engineered and manufactured in Great Britain the MFHLP31006

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 120µ @ β200
Efficiency 222µ @ β1000
Outer Diameter 78.0 mm
Inner Diameter 43.2 mm
Length 433.0 mm
Δ Collapse Pressure 21 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C

Description

The MICROFIT® UltraGen III MFHLP31006 is the MICROFIT® approved replacement to the Pall HC9650FUT16H. Engineered and manufactured in Great Britain the MFHLP31006

Cross References

To the genuine Pall HC9650FUT16H

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β200
Efficiency 2 22µ @ β1000
Style Pressure Filter
Outer Diameter 78.0 mm
Inner Diameter 43.2 mm
Length 433.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 21 BAR
Seal Nitrile
Temperature Range -30 - +100°C
