Specification

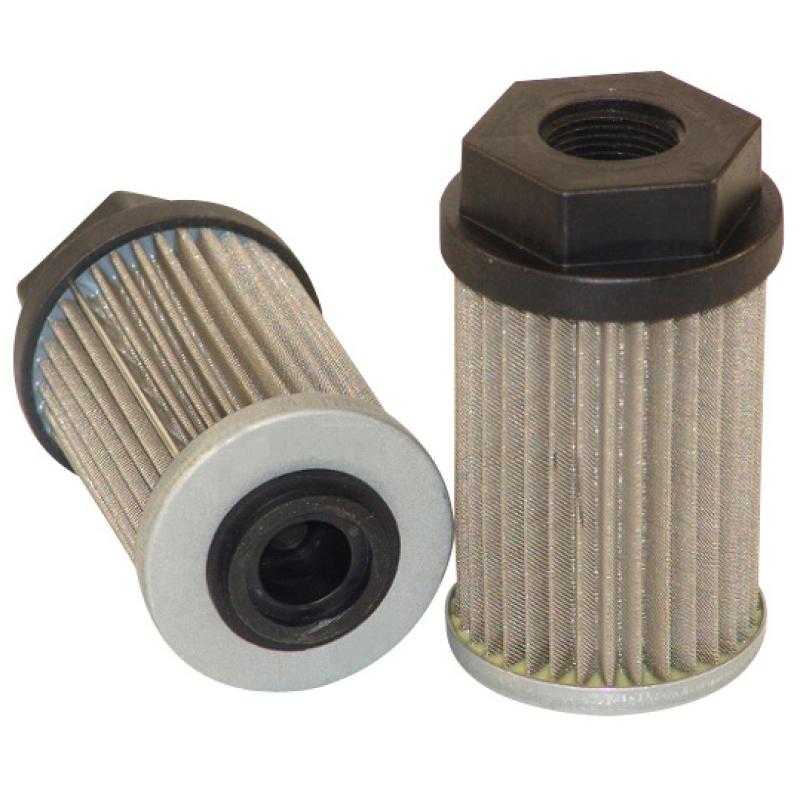

StyleSuction Strainer
Efficiency 1125µ
Outer Diameter 150.0 mm
Length 272.0 mm
Thread3" BSP
Bypass Pressure 0.3 BAR
MediaWire Mesh
Flow DirectionOUT-IN
Δ Collapse Pressure 1 BAR
Temperature Range -30 - +100°C

Approved Product

Find out more
Parker Brand Logo

Same Fit-Form & Function

As the Genuine Parker UCC UCSE5108

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
125µ
Efficiency 2
Style Suction Strainer
Outer Diameter 150.0 mm
Inner Diameter
Length 272.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread 3" BSP
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

0.3 BAR
Collapse Pressure 1 BAR
Seal
Temperature Range -30 - +100°C
